hycrome
At Hycrome'Thane we have our own designing of anodes ,jig fixtures to achieve the best quality and give consistent results .We have 12 platings vats at present ,of different sizes at our premises.
We cater to a wide variety of Industries and have been doing so for the last thirty years . To name a few
Hydraulics & Pneumatic-- Piston Rods,TelescopicCylinders(I.D),
Printing Industry-Engraving and Printing Rollers,
Video Audio tapes-Mirror Finished Rollers ,
Plastic Industry- Extrusion Screws, Dies and Moulds,etc.......
Our customers demand quality & we are proud to be associated with them and their success.
Hard Chrome Plating is a process whereby a wear resistant layer of chromium is deposited on a substrate surface.With its low coefficient of friction,high hardness,moderate corrosion resistance,the process finds wide applications for prolonging the life of the components,or salvaging worn out parts which would otherwise need to be scrapped.
Hard Chrome is often deposited on sliding parts for the protection of moving components of engines,pumps,compressors..etc. A typical Hard Chrome plant consists of a Chromic Acid based solution in plating vat.The D.C.current is required for the deposition of chromium which is supplied by an AC to DC rectifier.The component to be plated is connected to the negative ,whereas lead anodes are used to complete the circuit.A constant monitoring & pretreatment are required to ensure that the deposited chromium layer is of a satisfactory quality. Post plating operations such as buffing, grinding or superfinsihing are often undertaken,depending upon the field of application of the plated components.
Properties:
Hardness | 850-1000 vickers. |
Coefficient of friction | Chromium v/s Steel 0.2 |
Melting Point | 1850 °C |
Coefficient of Expansion | 8.1 X 10¯6 |
Magnetic Properties | paramagnetic |
Application
The main properties for which Hard Chrome Plating is deposited are
Hardness and Resistance to wear
Resistance to corrosion and heat
Low coefficient of friction and non adhesive properties.
Appearance and decorative properties.
Some of the typical industrial application of Hard Chrome Plating are as
follows:
INDUSTRIAL APPLICATIONS
1) General Engineering Components:
Cutting Tools, drills,files,gauges,spindles,metal drawing dies..etc.
2) Hydraulics & Pneumatics:
Pistons,Cylinders,liners,Pumps,Compressor parts.etc
3) Textiles:
Rollers,Drums,Printing Cylinders,thread guides.etc
4) Rubber & Plastics:
Extrusion and Injection machinery parts such as screws,barrels
tie bars,molds and dies.etc
5) Paper & Printing :

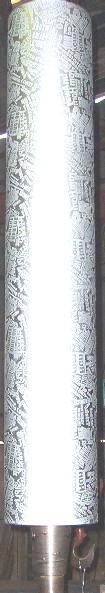

Embossing rolls,engraved rolls,screen plates,rams,press cylinders,
drying rollers.etc.
6) Chemicals :
Flakerdrums, Shafts, Valve components, pump parts, etc.
7) Other Applications :
Food products, aviation, railway machinery agriculture, mining
electrical etc.
for reference only
